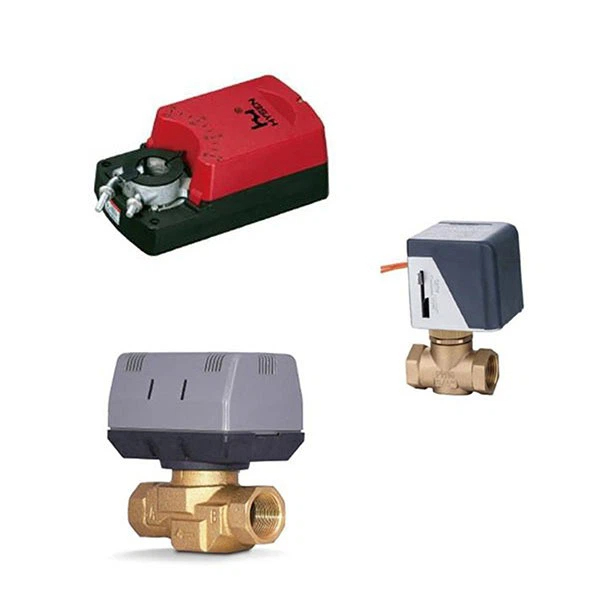

Electrical Motorized Valves

Application: Modulating Motorized Damper Acuator is controlled by a modulating on/off, proportional control system and moves the ball of the valve, to the opening position dictated by the control signal.

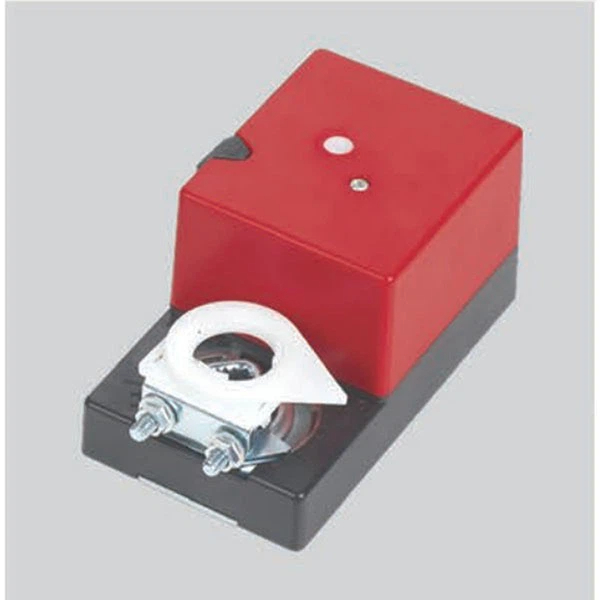

1. General Damper Actuator
2.2Nm Modulating
Model:
HY-DM02-24(S)
HY-DM02-230(S）

Send lnquiry

Description

Production Introduction

Modulating the Motorized Damper actuator's equal percentage flow characteristic guarantees the valve performance of stability. Control ball valves are widely used in HVAC systems, heating systems, water treatment equipment, and water running control in industrial automation, such as AHU, flesh air-handling units, differential pressure control units, and heat exchangers for flow regulation and on/off control.

Product Specifications

Medium:	cold/hot water, with 50% glycol, 100 kPa saturated steam
Temperature of medium:	2°C...90°C
Rated pressure:	PN40
Pipe connector:	internal thread
Ambient temp. range:	−5…+60°C;0…90%RH Size: 1/2’’ -2’’
Valve type:	2-way and 3-way
Flow characteristic:	equal percentage, on/off

Product Feature

1. Override the manual operating device on the actuator.

2. Lightweight and compact design.

3. Visual position indicator on the actuator.

4. The valve opens softly to guard effectively against the water hammer

Product Application

For the operation of air control dampers in the HVAC system. Toque :2Nm Nominal voltage:AC/DC 24V AC100...240V Control:0(2)...10VDC/0(4)...20mA -S type include 1 auxiliary switch.
