3-Way Motorized Zone Valves

Production Introduction

• Available in 2-port, 3-port diverter and 3-port mid-position versions
• Interchangeable actuators
• Available as separate valve bodies and actuators or in convenient sets
• For ease of installation and serviceability, actuators are fitted to the valve bodies on site at time of installation
• Wide range of valve body sizes

Product Specifications

HYV0322 Zone valves are typically motorized and controlled by electric actuators, which open and close the valve based on the input from a thermostat or control system. Thermostats regulate the zone valves, ensuring they open or close when needed to maintain the desired temperature within each zone. When the valve is open, it allows the flow of hot or cold water (or steam) through the pipe and into the designated zone. Conversely, when the valve is closed, it prevents the flow, effectively shutting off heating or cooling to that area.

Product Feature

1, The driver must be removed from the valve body before installation. Ensure thatthe manual lever is in the (MAN) position and press the square detach button on thebottom side of the drive. Remove the driver from the valve body.

2, For two-way valves, it must be ensured that the direction of water flow is from Ato B of the valve. for three-way valves, it must be ensured that the direction of waterflow is from AB to A or from AB to B.

3,Use the quick-tightening nut and sealing ring supplied with the valve to connectthe valve to the pipe. Do not tighten the nut so tightly that the pipe is deformed andthe seal leaks.

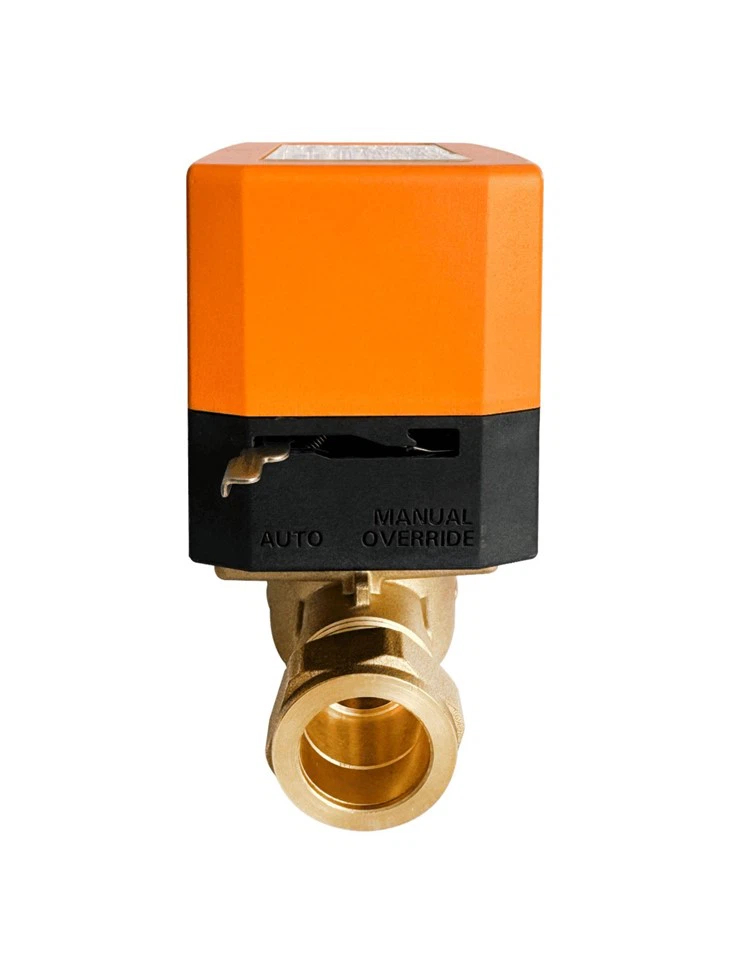

4,Ensure that the manual operating lever on the driver is in the (MAN) positionAlign the flat shaft on the valve body with the drive shaft slot on the driver; then alignthe round locating pin on the valve body with the locating hole in the driver and pressfirmlyinto place. At  this point the locking mechanism will snap into place.

5,Connect the cable plug. Note that the plugand socket catches must be aligned.

6,The system should be cleaned after the valve has been installed. When cleaningensure that the manual lever on the actuator is in the (MAN) position

Product Application

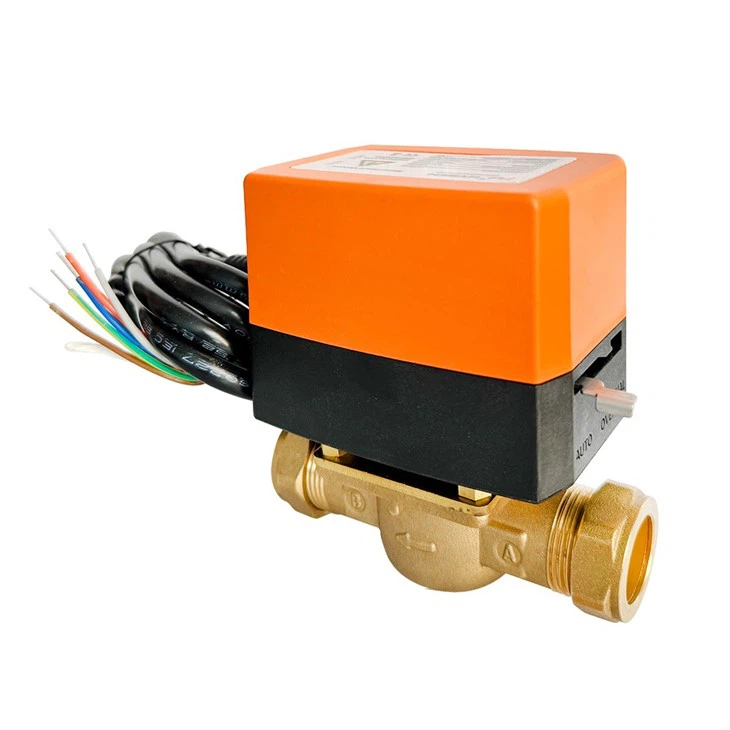

Manufactured to the highest plumbing and electrical standards, this series ofelectrically operated valves consists of two parts: a brass body and an actuator. Thevalve body and pipework are of hard seal construction. The valve body and actuatoican be disassembled, quipped with plug-in cable glands. Designed for water flowon/off control of domestic and commercial/industrial heating or cooling systems.

it can be use for controlling the flow of hot water. With complete construction and a manual opener, all models may be installed without disassembling the valve. The actuator motor may also be replaced without removing the valve body or draining the system. Explore hot water zone valves with reliable performance.

Packing Listing

1 pc Motorized Flow Control Valve

1 pc User Manual(in English)

1 packing box

FAQ

Q1:Could we order a sample to test ?

Sure.It is available.

Q2:What Certificate do you have for this product?

CE (EMC,LVD,Health and Radio) & Rohs.

Q3: Could we pack it with personalization package ?

Of course ,and MOQ is 1000pcs if needed.

Q4: How long is the delivery time ?

Sample is within 3 days ,bulk order is 15-35 days as usually according to quantity.

Q5: What Certificate do your factory have?

ISO9001 and BSCI certificate.
