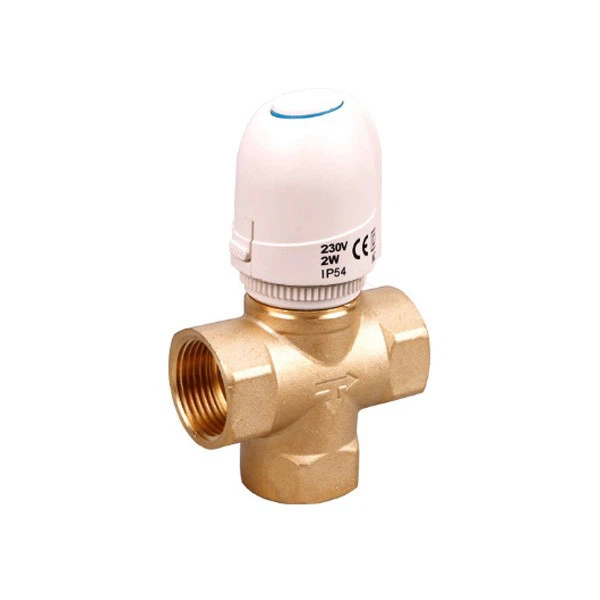

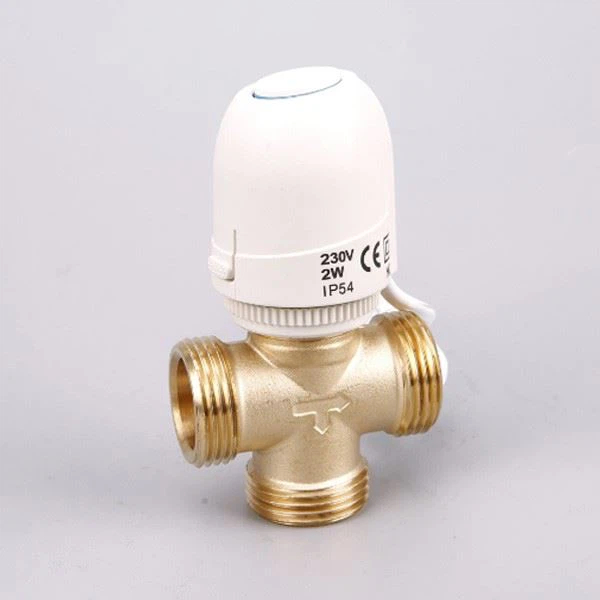

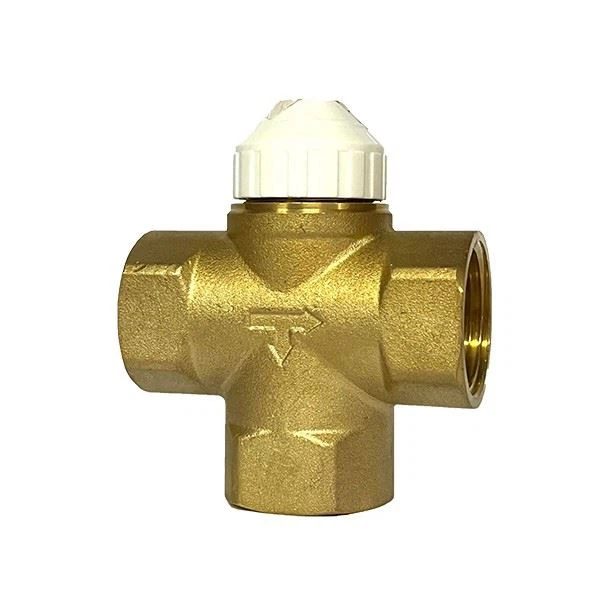

Electric Actuator Valve
The valve can control water flow to cooling as well as heating batteries, such as radiators, convectors, chilled ceilings etc.
Production Introduction
Brass electric actuator valve suitable for controlling the opening or closing of cold water or hot water air conditioning system pipes, so as to control the room temperature.

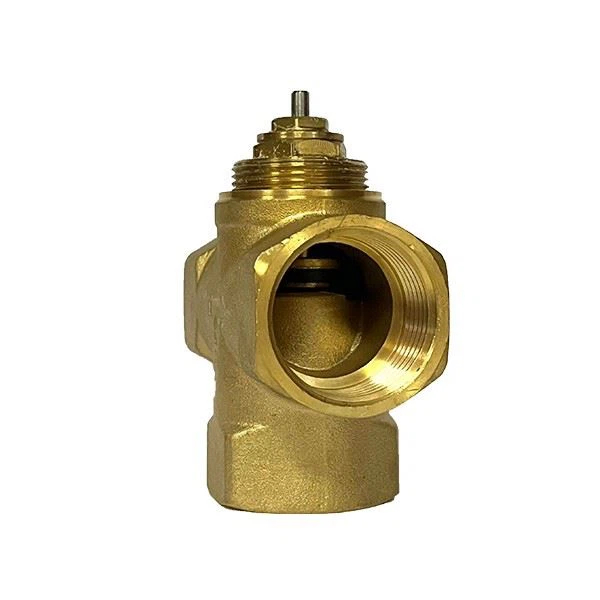

The actuators are made of chromed brass.
Can be fitted with electromotoric actuators or thermal actuators.
Product Specifications
|
Body Size: |
DN15/DN20/DN25 |
|
Body Type: |
2-way/3-way |
|
Max.diff.pressure: |
200 kPa /100 kPa /62 kPa |
|
Contact capacity: |
M30 x 1.5mm |
|
Permissible Media: |
Chilled Water, water with anti-freeze |
|
Body material: |
Brass |
Product Feature
1.High quality brass forging
2.Spring return function, shutdown valve closed or open (normally closed or normally open type).
3.Use international standard threads.
4.Low power consumption.
Product Application
Brass electric actuator valve use in ventilation and air-conditioning systems for water-side terminal unit control in closed circuits, e.g. for induction units, fan-coil units, small reheaters and small recoolers.
1. 2-pipe systems with 1 heat exchanger for heating and cooling
2. 4-pipe systems with 2 separate heat exchangers for heating and cooling
In closed-circuit zone heating systems, e.g. for:Separate floors in a building Apartments,Individual room.
Packing Listing
1 pc Angle Valve
1 pc User Manual
FAQ
Q1:Could we order a sample to test ?
Sure.It is available.
Q2:What Certificate do you have for this product?
CE (EMC,LVD,Health and Radio) & Rohs.
Q3: Could we pack it with personalization package ?
Of course ,and MOQ is 1000pcs if needed.
Q4: How long is the delivery time ?
Sample is within 3 days ,bulk order is 15-35 days as usually according to quantity.
Q5: What Certificate do your factory have?
ISO9001 and BSCI certificate.
