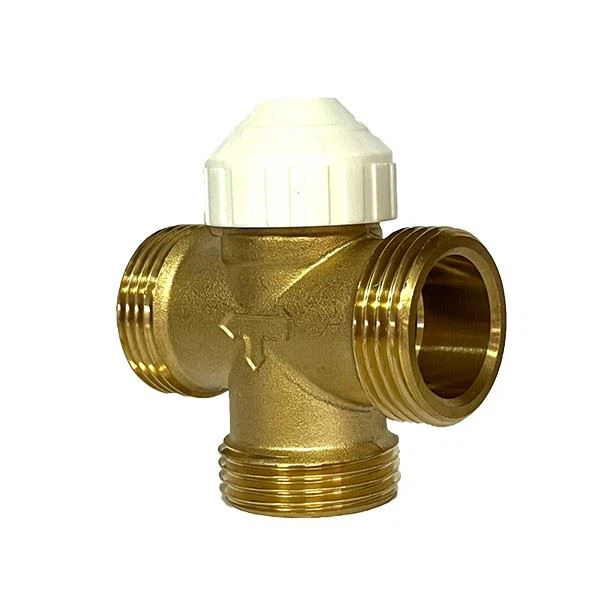

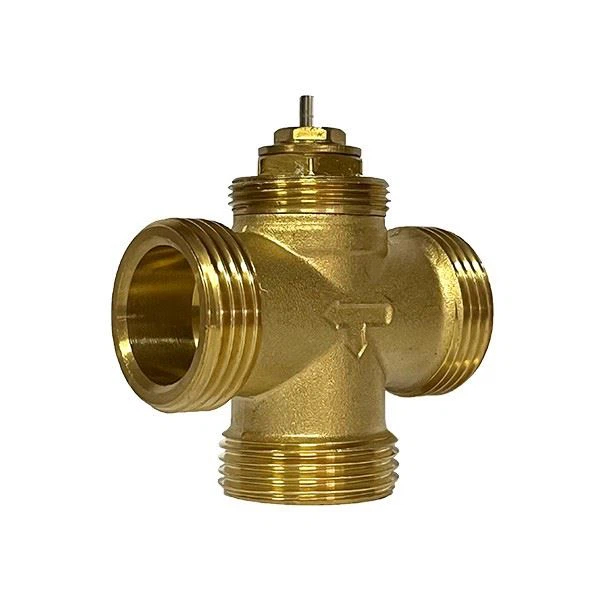

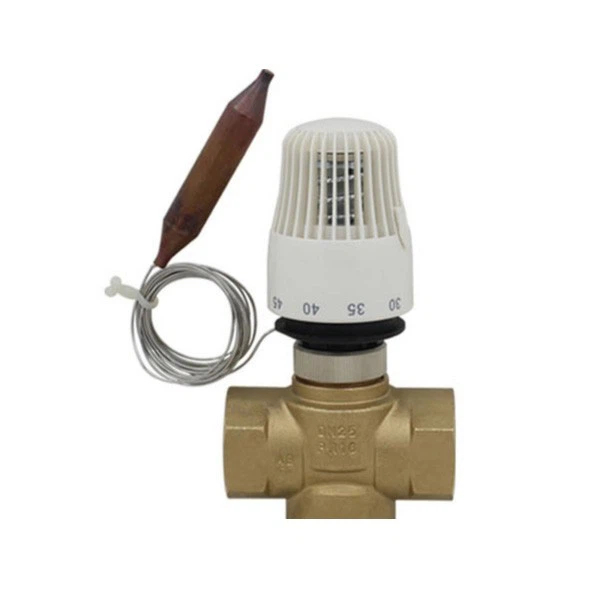

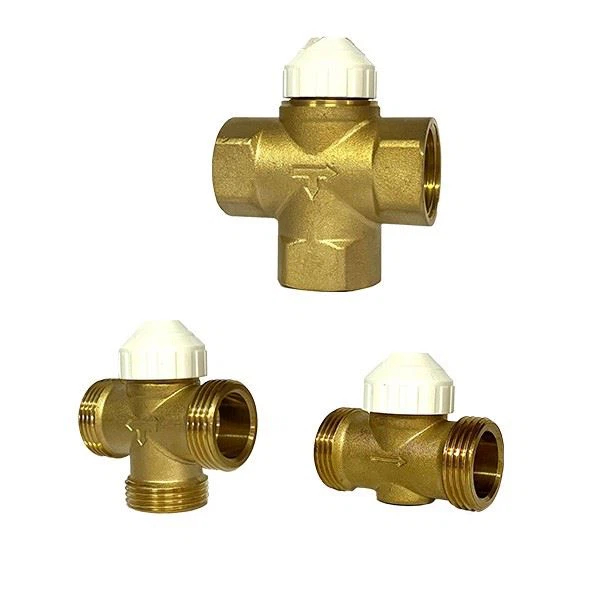

Electric Three Way Valve
Production Introduction
Electric Three Way Valve Forged Brass Valve series is primarily designed to regulate the flow of water in response to the demand of a controller in zone and terminal unit applications.
Product Specifications
|
Body Size: |
DN15/DN20/DN25 |
|
Body Type: |
2-way/3-way |
|
Max.diff.pressure: |
200 kPa /100 kPa /62 kPa |
|
Contact capacity: |
M30 x 1.5mm |
|
Permissible Media: |
Chilled Water, water with anti-freeze |
|
Body material: |
Brass |
Product Feature
The executing agency:
1. Electric heating wax sensor, driven by PTC
2. Spring return function, shutdown valve closed or open (normally closed or normally open)
3. No noise in operation, snap type installation, simple and convenient, arbitrary Angle.
4. High safety and long life
5. Low power consumption.
6.Valve Body Material is hot pressed brass
Product Application
Electric Three Way Valve for closed circuits. Compatible electro-motoric actuators SUA, SSA, SFA and electrothermal actuators STA. For cooling water, hot water and for water with anti-freeze.
The actuator connects to the valve with the connection nut. The actuator and the valve should be mounted with the actuator above the valve.
Packing Listing
1 pc Angle Valve
1 pc User Manual
FAQ
Q1:Could we order a sample to test ?
Sure.It is available.
Q2:What Certificate do you have for this product?
CE (EMC,LVD,Health and Radio) & Rohs.
Q3: Could we pack it with personalization package ?
Of course ,and MOQ is 1000pcs if needed.
Q4: How long is the delivery time ?
Sample is within 3 days ,bulk order is 15-35 days as usually according to quantity.
Q5: What Certificate do your factory have?
ISO9001 and BSCI certificate.
