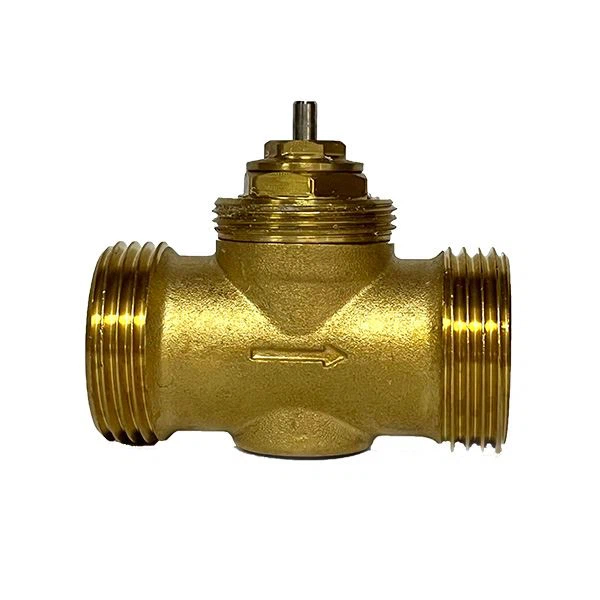

2-Way Electric Valve

2way DN15 Internal Thread/DN15 External Thread
Electric fan coil valve,works with actuator or thermostat head

Send lnquiry

Description

Production Introduction

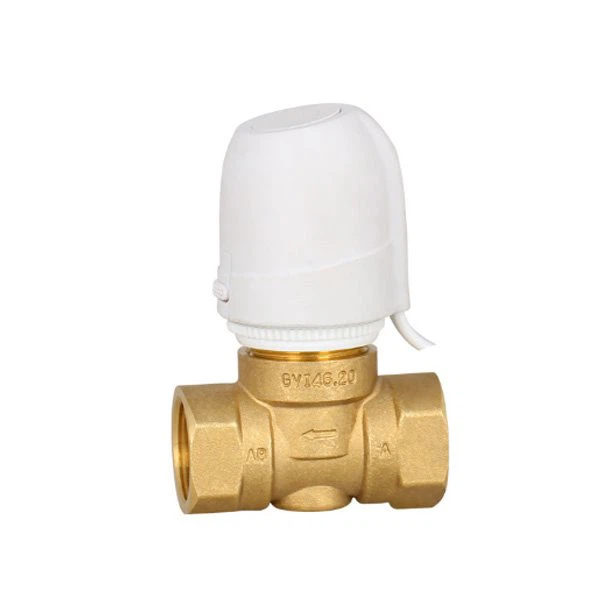

Brass 2-way Electric Valve is intended for zone control systems together with the thermal actuators. The valve can control water flow to cooling as well as heating batteries, such as radiators, convectors, chilled ceilings etc.

Product Specifications

Body Size:	DN15/DN20/DN25
Body Type:	2-way/3-way
Max.diff.pressure:	200 kPa /100 kPa /62 kPa
Contact capacity:	M30 x 1.5mm
Permissible Media:	Chilled Water, water with anti-freeze
Body material:	Brass

Product Feature

Material: Selected high quality brass

Advanced production technology: high temperature forging, integrated forming.

Fashion appearance: raw material pouring, beautiful appearance.

Product Application

2-way electric valve suitable for controlling the opening or closing of cold water or hot water air conditioning system pipes to achieve the purpose of controlling room temperature. The actuator is driven by paraffin wax, and the invention of spring return, the valve does not work in the normally closed state. When it is necessary to work, the thermostat provides an open signal to make the electric valve switch on the AC power supply and operate. When the valve is opened, chilled or hot water enters the fan coil to provide cool or warm air to the room. When the greenhouse reaches the temperature controller, the thermostat disables the electric valve, and the return spring closes the valve, thus cutting off the flow of water into the fan coil. Open through valve close. Keep the room temperature within the set temperature range of the thermostat.
