Thermal Actuator 230v
Feature: Normally-closed configuration, wax-filled element
Function: on/off-controls, normally close/open
Production Introduction

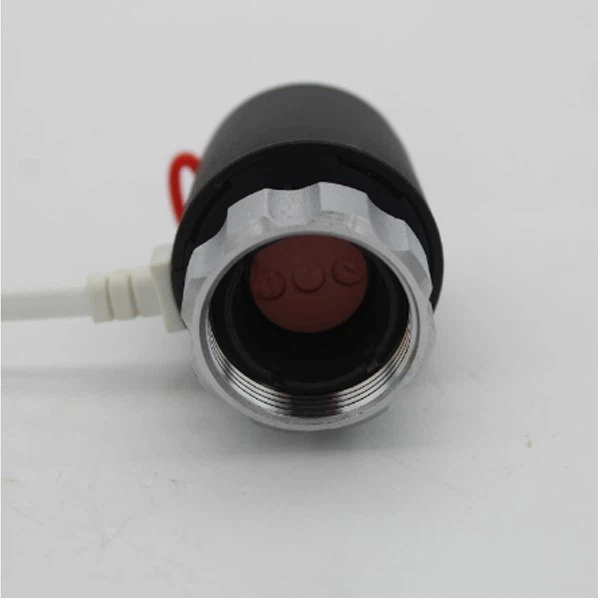

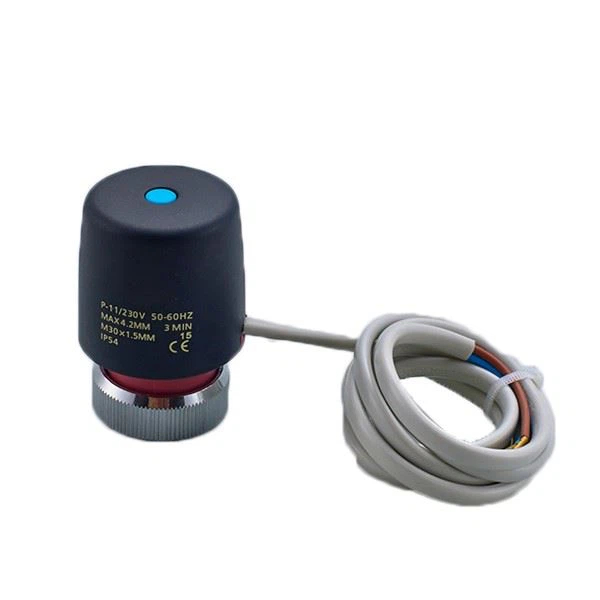

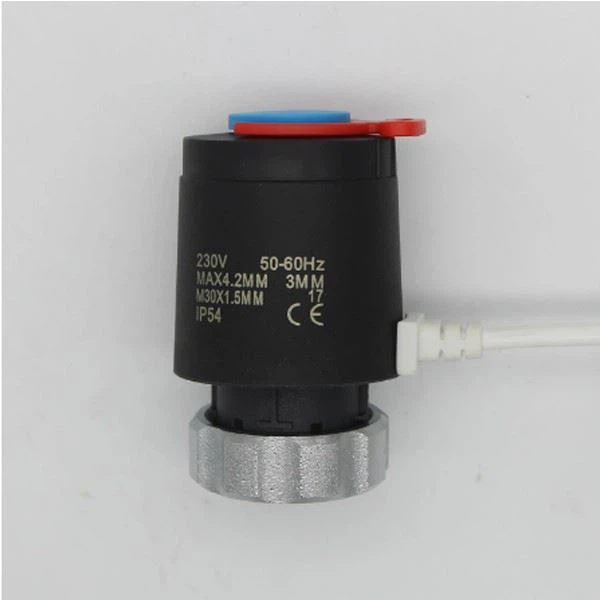

H30-6 230V Normally Closed Electric Thermal Actuator Radiator for Manifold Underfloor Heating NC Radiator Actuator Valve
OOTDTY.Electric heating actuators for branch valves, small valves, and dynamic balancing valves of the manifold are the electric drive parts of the control.
Product Specifications
|
Power: |
AC230V (DC 24V available) |
|
Initial Current: |
50MA |
|
Force: |
110N |
|
Stroke: |
3mm |
|
Valve interface: |
nut M30*1.5mm |
|
Cable Length: |
100mm |
Product Feature
Paraffin propulsion element, driven by PTC heating
With the spring return function, the valve is closed after power off
No noise during operation
Travel position indication
Nut connection installation method, simple, fast, easy to remove
Product Application
Technical Parameters:
Voltage: 230VAC 50 / 60HZ
Stable power consumption: 3W
Thrust: 0110N
Stroke: 3.5mm
Full journey: 180s-300s
Connection size: M30 * 1.5
Ambient temperature: -5 ~ 50 ℃
Cable length: 70cm (27inch)
Shell material: PC
Packing Listing
1 pc Electric Actuator
1 pc User Manual
FAQ
Q1:Could we order a sample to test ?
Sure.It is available.
Q2:What Certificate do you have for this product?
CE (EMC,LVD,Health and Radio) & Rohs.
Q3: Could we pack it with personalization package ?
Of course ,and MOQ is 1000pcs if needed.
Q4: How long is the delivery time ?
Sample is within 3 days ,bulk order is 15-35 days as usually according to quantity.
Q5: What Certificate do your factory have?
ISO9001 and BSCI certificate.
