Trv Temperature

Application: Control Thermostatic Radiator Temperature
Model:HY369 zigbee+ gateway
Feature:Smart ZigBee Control, gateway control, manual mode
Send lnquiry

Description

Production Introduction

The combination of smart tuya ZigBee gateway and HY369 ZigBee thermostat can control your bedroom, kitchen and living room and study TRV Temperature at the same time, so that the temperature of your whole house is under control. You can add controlled devices on the app, and share control to meet smart home requirements.

Product Specifications

Power:

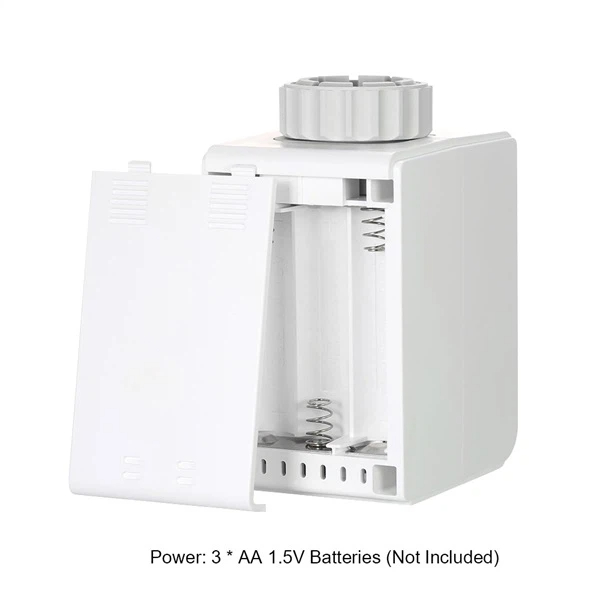

3* AA alkaline batteries

Range of temperature display:

1~70°C

Maximum route

4.5mm

wireless connection

ZigBee

Maximum current

90mA

Limit temperature range:

1~70°C

Default range of temperature adjustment

5~35°C

Insulating condition:

Normal environment

Probe sensor:

NTC(10k)1%

Thread size

M30*1.5

Size(mm):

66*52*100mm



Product Feature

1.With the tuya ZigBee gateway, you can voice control the tuya ZigBee device via Alexa and Google Home. Multiple HY369 ZigBee can be controlled.

2.HY369 ZigBee actuator system self-test: After power-on, the system will self-test to ensure that the thermostat works normally.

3.The gateway and HY369ZigBee thermostat can be controlled TRV Temperature by mobile phone, and controlled in smart life app and tuya app. It can also be shared with family members for control and group control.

4.Child lock can prevent children from misoperation.

5.The HY369 ZigBee thermostat adjusts the temperature through buttons and can work with the boiler central control box.

Product Application

ZigBee Radiator Temperature and TRV Temperature Control

Packing Listing

4 * HY369 ZigBee Thermostat

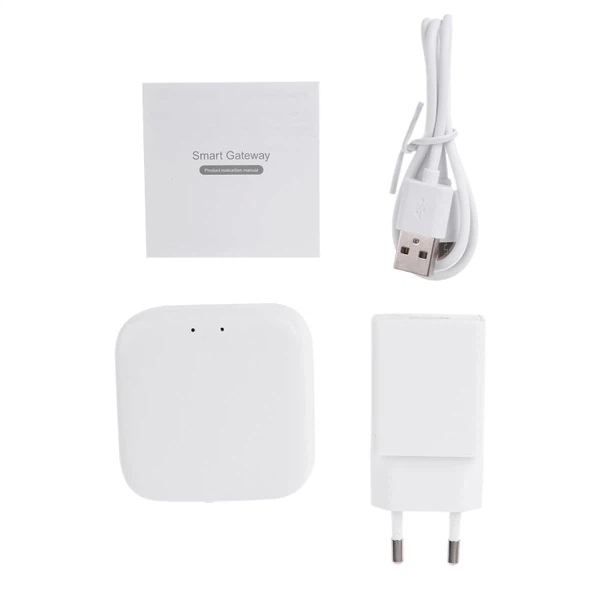

1*tuya Gateway

4 * RA Adapter

4 * RAV Adapter

4* RAVL Adapter

1*Instruction

FAQ

Q1:Could we order a sample to test ?

Sure.It is available.



Q2:What Certificate do you have for this product?

CE (EMC,LVD,Health and Radio) & Rohs.



Q3: Could we pack it with personalization package ?

Of course ,and MOQ is 1000pcs if needed.



Q4: How long is the delivery time ?

Sample is within 3 days ,bulk order is 15-35 days as usually according to quantity.



Q5: What Certificate do your factory have?

ISO9001 and BSCI certificate.
