Underfloor Heating Thermostat Wireless
Color: White, black (optional)
Model:
HY101RF BW
HY101RF WE
HY101RF WW
Production Introduction

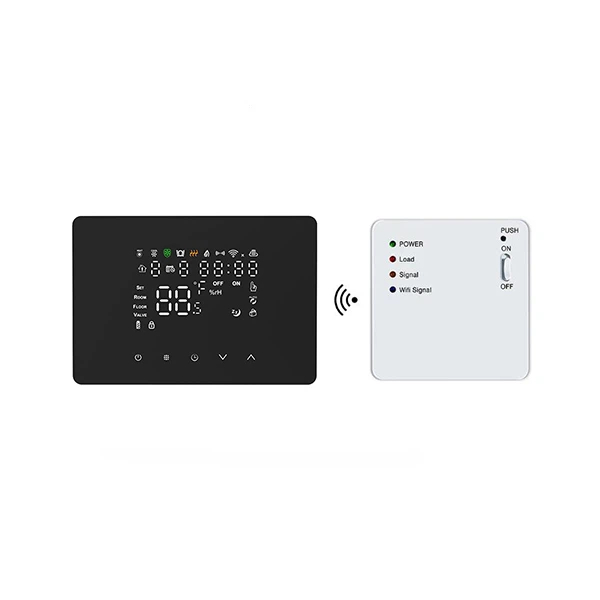

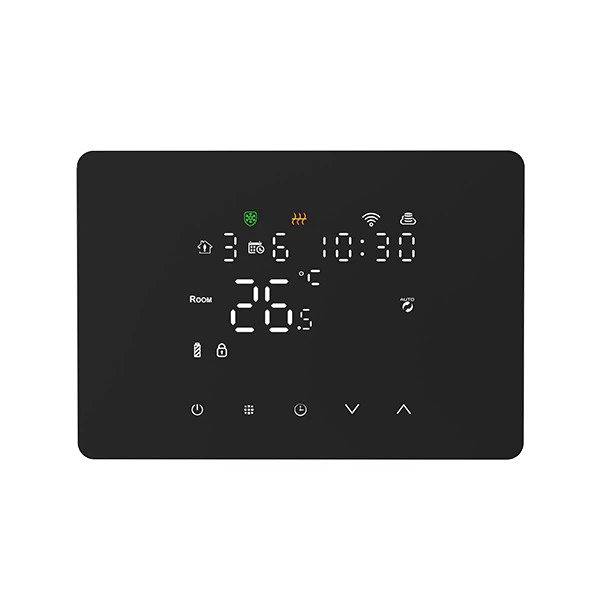

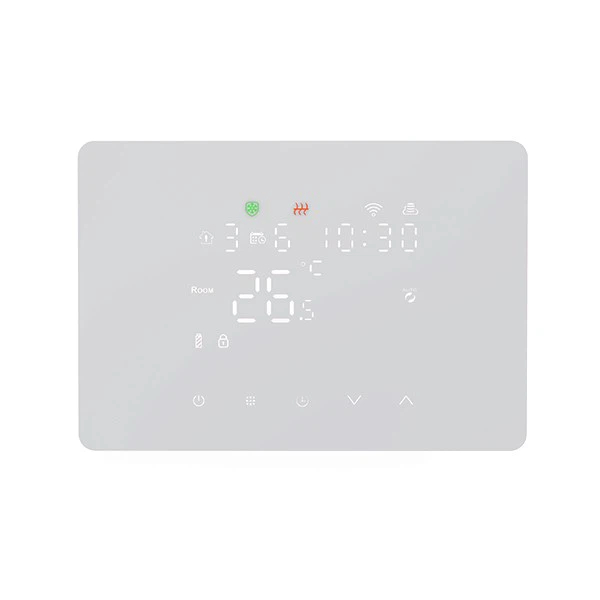

HY101RF Underfloor Heating Thermostat Wireless
Wireless digital room thermostat HY09RF, designed to control central heating and cooling systems. The LCD display shows the current day of the week, the currently active program, the set time or temperature and the current room temperature. Easy to use with touch buttons or Android / iOS mobile apps.
Product Specifications
|
Power: |
Receiver: 230Vac 50/60HZ Thermostat: USB power supply(TYPE-C) |
|
Type |
Tuya smart thermostat |
|
Display accuracy: |
0.5°C |
|
Programmable |
5+2/6+1/ 7 days |
|
Contact capacity: |
5A/250V(WW);16A/250V(WE) |
|
Limit temperature range: |
1~70°C |
|
Range of temperature adjustment: |
5~35°C |
|
Insulating condition: |
Normal environment |
|
Probe sensor: |
NTC(10k)1% |
|
Output: |
Switch relay |
|
Installation: |
recessed type (in the wall) |
|
Size(mm)： |
130*90*20mm |
|
Material: |
Anti-flammable PC +ABS |
Product Feature
[Smart Programmable Thermostat] Weekly programmable and 5+2 /6+1/7 days programmable, energy-saving intelligent and economical.
[Voice Control] Supports APP voice control. Compatible with Amazon Alexa, Google Assistant, Tuya
[LED Touchscreen] Large display screen can clearly display the data in both bright and dark environment, easy to operate.
[Flame-Retardant] Made from premium PC and ABS material with high strength and high density, no fear of fire, sturdy and durable;
[0.5℃ Accuracy] Precisely control temperature within the setting level, offering the temperature you want; also support data storage function when power is off.
[Wide Application] Suitable for gas boiler heating central control, perfect for home, market, factory, office, hotel, and more, movable display panel can be placed at bedroom, living room, kitchen, etc.
Product Application
Power: Receiver: 230Vac 50/60HZ Thermostat: USB power supply(TYPE-C)
! Pls remove batteries when USB power is working.
☆ Display accuracy: 0.5°C
☆ Insulating condition: Normal environment
☆ Probe sensor: NTC(10k)1%
☆ Running program: Set per 1 week as a cycle
☆ Contact capacity: 5A/250V(WW);16A/250V(WE)
☆ Output: Switch relay
☆ Working environment temperature: 0~70°C
☆ Installation: Wall mounted or on battery seat
☆ Range of temperature adjustment: 5~35°C
☆ Size(mm)：130*90*20
Packing Listing
1 * Thermostat
1 * Receiver
1 * User Manual
2 pairs of screws
FAQ
Q1:Could we order a sample to test ?
Sure.It is available.
Q2:What Certificate do you have for this product?
CE (EMC,LVD,Health and Radio) & Rohs.
Q3: Could we pack it with personalization package ?
Of course ,and MOQ is 1000pcs if needed.
Q4: How long is the delivery time ?
Sample is within 3 days ,bulk order is 15-35 days as usually according to quantity.
Q5: What Certificate do your factory have?
ISO9001 and BSCI certificate.
