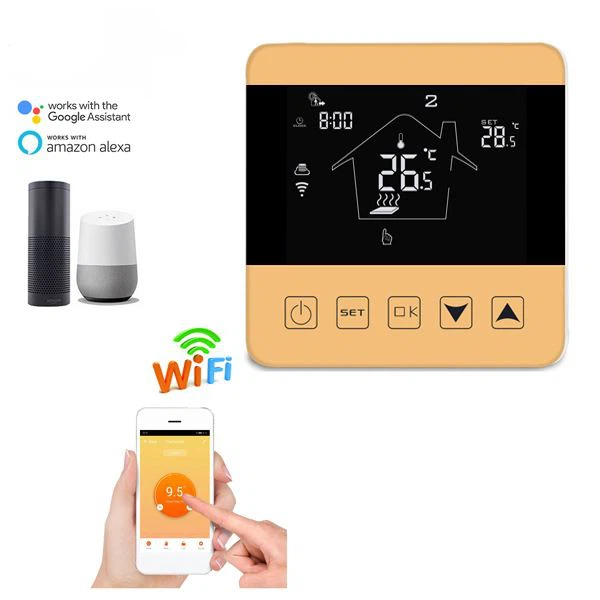

Electric Underfloor Heating Thermostat Wifi
Feature:Touch Screen,Wi-Fi function,Voice Control
Model: WE, WW or LD （dry contact ) optional
HY08-3WE 16A for Electric heating
HY08-3WW 3A for Water heating
Production Introduction
HY08-3 Electric Underfloor Heating Thermostat Wifi: intelligent water floor, electric heating and gas boiler water heating system are controlled by Tuya Wi Fi protocol, providing maximum and comprehensive convenience for family intelligent life, easily monitoring indoor temperature, and focusing on making simple, humanized and pleasant home feeling. This color is suitable for different decorative styles. (Note: The current load of hot water and gas-fired boiler is 5A, and that of electric floor heating is 16A.)
Product Specifications
|
Power: |
90-240Vac 50/60Hz |
|
Range of temperature display: |
1~70°C |
|
Display accuracy: |
0.5°C |
|
Running program: |
Set per 1 week as a cycle |
|
Contact capacity: |
16A/(WE) |
|
Limit temperature range: |
1~70°C |
|
Range of temperature adjustment: |
5~35°C |
|
Insulating condition: |
Normal environment |
|
Probe sensor: |
NTC(10k)1% |
|
Output: |
Switch relay |
|
Installation: |
recessed type (in the wall) |
|
Size(mm)： |
86*86*27mm |
Product Feature
Electric Underfloor Heating Thermostat Wifi,Specifications: Power supply: 95~240VAC, 50~60Hz, accuracy: ±0.5℃, Sensor: NTC, Housing material: PC+ABS (flame retardant).
The intelligent radiator thermostat is applicable to the internal temperature control of the floor in heating systems such as indoor hot water systems or boilers. It can be widely used in Europe. It perfectly combines decorative style with extra customization.
Beautiful appearance: self-patented design, elegant tempered glass frame, large feather touch panel, beautiful.
Product Application
For Electric Heating 16A
For Water Heating 3A
For Gas Boiler Heating Thermostat
Packing Listing
1 pc Thermostat
1 pc User Manual
1 pc Sensor Cable optional
A pair of screw
FAQ
Q1:Could we order a sample to test ?
Sure.It is available.
Q2:What Certificate do you have for this product?
CE (EMC,LVD,Health and Radio) & Rohs.
Q3: Could we pack it with personalization package ?
Of course ,and MOQ is 1000pcs if needed.
Q4: How long is the delivery time ?
Sample is within 3 days ,bulk order is 15-35 days as usually according to quantity.
Q5: What Certificate do your factory have?
ISO9001 and BSCI certificate.
