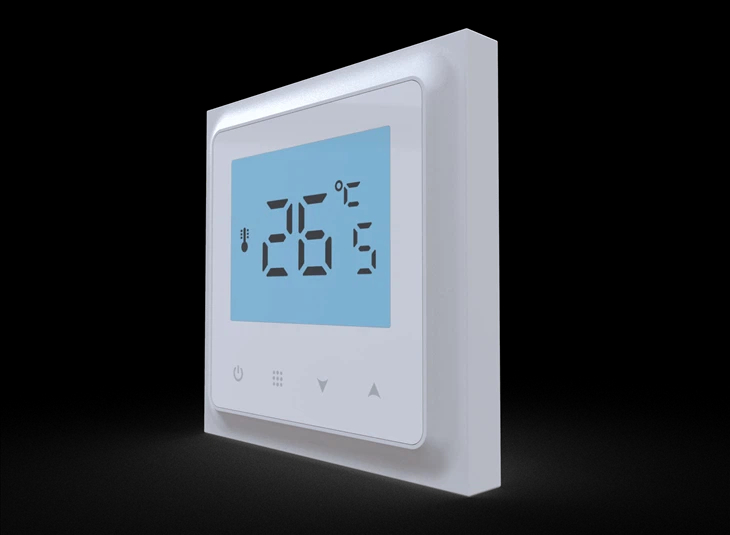

Digital Touch Heating Thermostat

Model：HY011 （WE,WW,LD,WIFI）
Application: for Under Floor Heating Thermostat
Feature: Touch Screen, Wi-Fi function, Voice Control
Power Supply：AC 90-240V 50/60HZ
Range of temperature adjustment：1~70°C
Program：7/6+1/5+2 days Programmable

Send lnquiry

Description

Production Introduction

HY011 is used for electric floor heating, water floor heating, boiler
From the appearance, it is a model with a touch screen button, which can quickly find the right position to light up the product when the screen is turned off

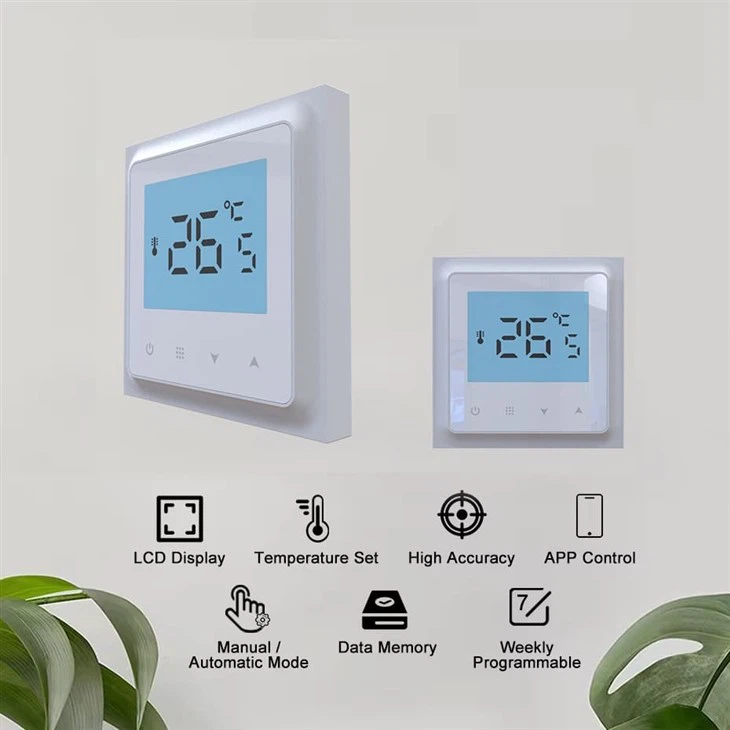

Recessed installation, very thin design, fit against the wall makes the room more elegant and modern
Easy to understand ICONS, you can clearly and quickly understand the room environment and thermostat status
LCD display, soft lighting

Product Specifications

Place of Origin	Fujian, China
Material	Anti-flammable PC +ABS
Type	Fujian, China
Power	AC 90-240V 50/60HZ
Load Current	16A(Electric Heating)/3A(Water Heating and Gas Boiler Heating)
Range of temperature adjustment	1~70°C
Default range of temperature display	5-35°C
Display Accuracy	0.5℃
Running Program	7/6+1/5+2 days Programmable
Sensor	NTC (10k) 1%
Screen	LED Touch Screen
Size(mm)	868610
Warranty	2 years
After-sale Service	Online technical support, Free spare parts,Return and Replacement
Design Style	Modern

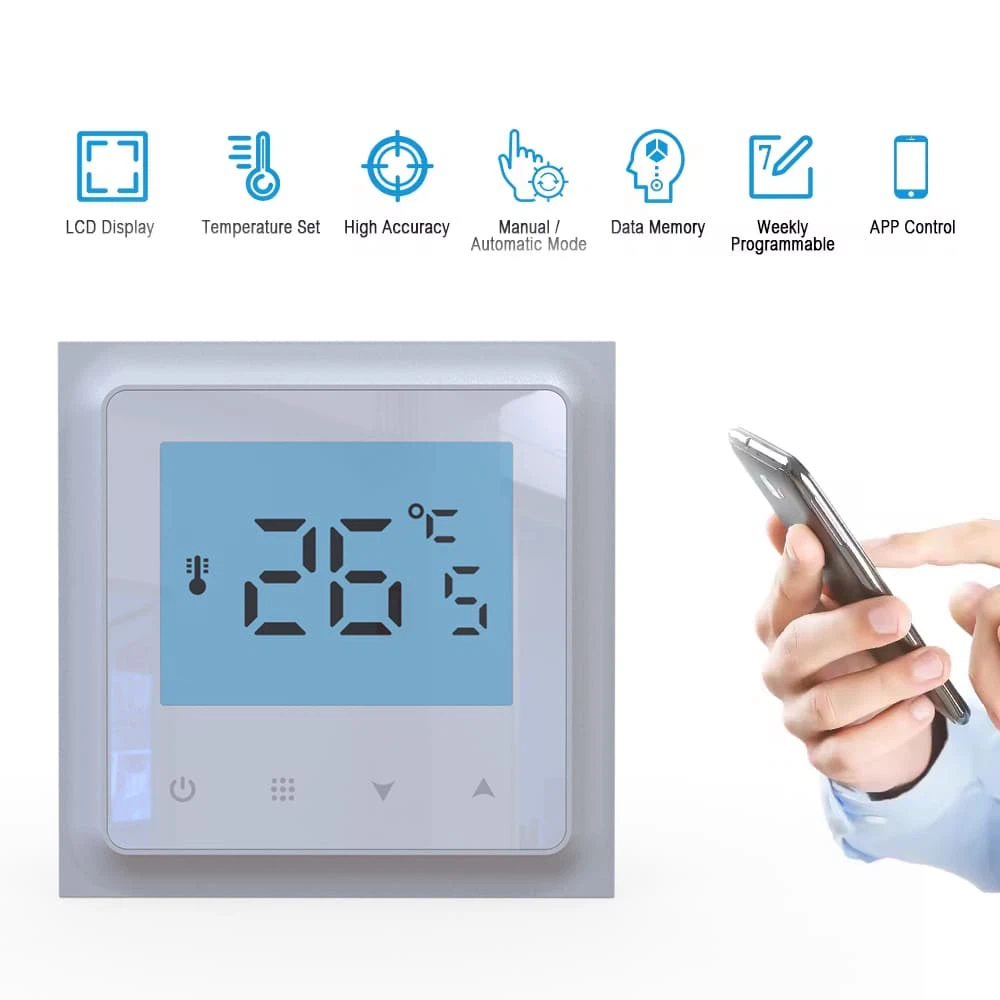

Product Feature

Built-in sensor to measure ambient temperature at all times. External sensors are available and The temperature of external sensor can be checked
Accuracy of ±0.5 ° C maintains temperature within the temperature you set
With children's lock function, can prevent children from touching by mistake
The thermostat has a memory function, meaning that even if a sudden situation makes it unable to work, the next time the thermostat is turned on, it will still keep the last state and Settings running
With weekly programming, 5+2/6+1/7 programming options
A variety of intelligent functions, such as window opening function, cooling and heating mode, holiday mode and so on
The WiFi model can be controlled through the mobile APP, so that you can remotely, anytime, anywhere to know the temperature and control the temperature

Product Application

One of the most significant advantages of the HY011 is its versatility. The thermostat is compatible with a wide range of in-floor heating systems, including electric and water-based systems, making it the perfect choice for use in any residential or commercial setting.
The HY312 also features a built-in sensor that monitors the indoor temperature and adjusts the heating system accordingly, ensuring optimal comfort and energy efficiency. The thermostat also includes an advanced air-sensing function that helps to prevent temperature overshoots and undershoots, resulting in a more consistent and comfortable indoor environment.
In addition to its advanced temperature control features, the HY312 is also designed with safety in mind. The thermostat includes a variety of safety features, such as over-current protection and earth leakage protection, ensuring that users and their homes are always protected.

It can be used for electric floor heating, water floor heating, gas boiler
A variety of application scenarios, such as room, living room, kitchen, office, meeting room, public place heating, property community and so on
It can enhance the beauty of your room or property decoration, and it provides features that make you feel comfortable to use
