Knob Digital Thermostat Panel

Model: WE, WW, or LD optional
HY510WE for Electric heating 16A
HY510WW-1 for Water heating 3A
HY510LD for Gas boiler 3A
color：White，black Feature: Touch Screen, Wi-Fi function，zigbee function, Voice Control，Rotation control
Temperature control range: 0-70℃
Send lnquiry

Description

Production Introduction

New HY510 floor heating thermostat – the latest addition to our product lineup that is set to revolutionize the way you heat your home. With advanced features and user-friendly controls.

At the heart of the HY510 thermostat is a high-precision temperature sensor that ensures accurate readings and maintains a consistent room temperature. This advanced sensor is complemented by a sleek LED touchscreen display that allows you to easily set your preferred temperature and adjust the heating schedule to suit your routine.

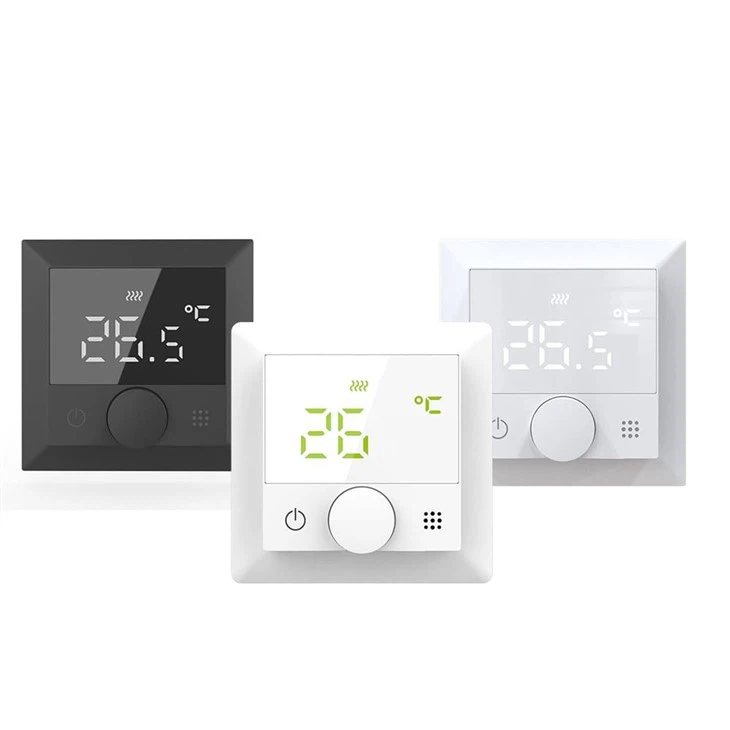

  • HY510 is a product with a very modern design
  • The combination of knob and touch buttons makes it very convenient for you to adjust the temperature
  • The screen is 55*55mm in size, and the small screen does not take up very much space

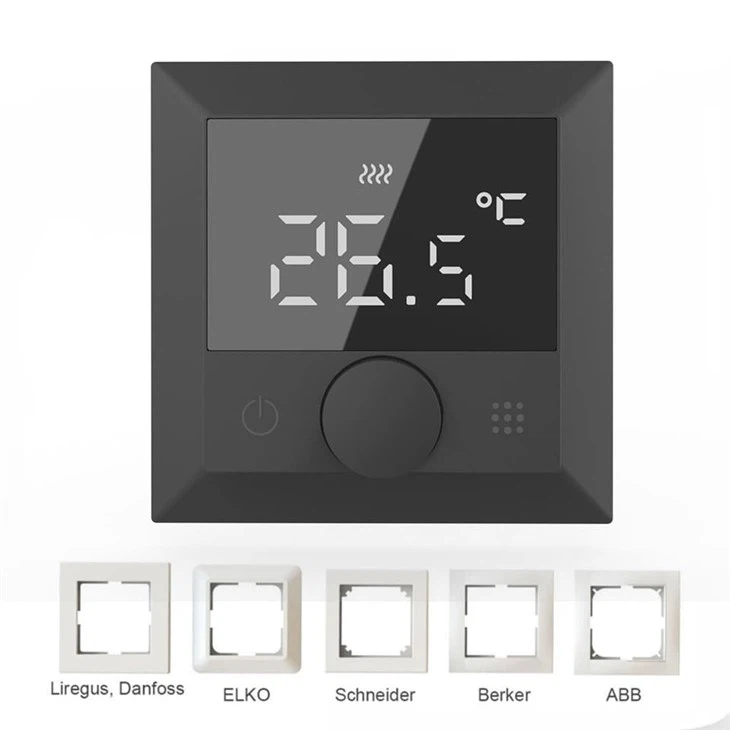

  • The frame can be replaced, so you can adjust the frame at any time according to the color of the wall
  • Recessed installation fits more closely into the wall
  • It has a very good comfort and energy saving design



Product Specifications

Power supply:

90-240Vac 50/60Hz

Model

HY510 Tuya smart thermostat

Temperature accuracy:

±0.5°C

Programmable

5+2 model /6+1 model/ 7 days model can be set

Contact capacity:

3A(WW/LD); 16A(WE)

Limit temperature range:

1~70°C

Factory default temperature:

5~35°C

Type:

WiFi model | ZigBee model

Probe sensor:

NTC(10k)1%

Output:

Switch relay

Installation:

recessed type (in the wall)

Size(mm)：

82*82mm(frame)

Product Feature

  • 【App control】Simply connect to WiFi to remotely control your underfloor heating thermostat WiFi anytime from anywhere through your smartphone using the Smart Life/Tuya App. Make changes easily to your temperature settings, create a schedule, create a smart scene or share the device with your family on the app. 2.4GHz WiFi is required.
  • 【Weekly programming】The Hysen WiFi thermostat has a manual mode, program mode, and holiday mode. The program mode features 5/2-day, 6/1-day, and 7/0-day scheduling with 6 time periods per day, giving you the freedom to program your weekly schedule and helping save energy and costs on your energy bill.
  • 【Cooling/heating function】 Simply switch to meet your requirements for room temperature and heating method at any time. You can use the cooling mode in the summer or keep the heating mode in the winter
  • 【The window opening function】 whether you are at home or out, the HY510 can make you feel at ease because of its intelligent management. Not only does it prevent your home from freezing, it saves energy and keeps you alert



Product Application

Feature:

Power：90-240Vac 50/60HZ

Sensor:：NTC(10k)1%

Current：3A (WW);16A (WE)

Set temperature range 1~70°C

Default set temperature range：5~35℃

Accuracy：±0.5℃

External sensor：options(NTC)

Size： 82*82mm(frame)

Packing Listing

1 x Thermostat
2 x Screw
1 x English Manual

1 x color box

1 x Temperature probe (for Electric underfloor heating)



FAQ

Q1:Could we order a sample to test ?

Sure.It is available.



Q2:What Certificate do you have for this product?

CE (EMC,LVD,Health and Radio) & Rohs.



Q3: Could we pack it with personalization package ?

Of course ,and MOQ is 1000pcs if needed.



Q4: How long is the delivery time ?

Sample is within 3 days ,bulk order is 15-35 days as usually according to quantity.



Q5: What Certificate do your factory have?

ISO9001 and BSCI certificate.
