Adjusting Thermostat On Water Heater
Application: for water/gas boiler /electric floor heating can be used with Alexa Google Home.
Feature:
1.Easy operation and utility have Touch Screen
2.Large LCD display with Blue Backlight or White Backlight
3.Easy to Install
Production Introduction
A Adjustable thermostat on a water heater for an underfloor heating system typically works similarly to a thermostat on any other type of heater. It is used to regulate the temperature of the hot water in the pipes, so that it remains at a safe and comfortable level. The thermostat is typically placed on the wall of the room or space it is heating and is programmed by the user to maintain a certain temperature. The thermostat then works by sensing when the temperature has dropped below its set level and turning the water heater on until it reaches its target setting. When it has reached this setting, the thermostat will turn off until the temperature drops again, when it will switch back on and continue to regulate the heat.
Adjusting Thermostat on Water Heater with Touch Screen for underfloor heating system can loop on every week, every day.Kinds of periods of time modes:5+2 / 6+1 / 7days. The application is heating equipment: Water heating system or electric heating and boiler.The temperature is automatically obtained, with an accuracy of 1°C.
Product Specifications
|
Power: |
90-240Vac 50/60Hz |
|
Type |
Tuya smart thermostat |
|
Display accuracy: |
0.5°C |
|
Programmable |
5+2/6+1/ 7 days |
|
Contact capacity: |
3A(WW/LD); 16A(WE) |
|
Limit temperature range: |
1~70°C |
|
Range of temperature adjustment: |
5~35°C |
|
Insulating condition: |
Normal environment |
|
Probe sensor: |
NTC(10k)1% |
|
Output: |
Switch relay |
|
Installation: |
recessed type (in the wall) |
|
Size(mm)： |
86*86*27mm |
Product Feature

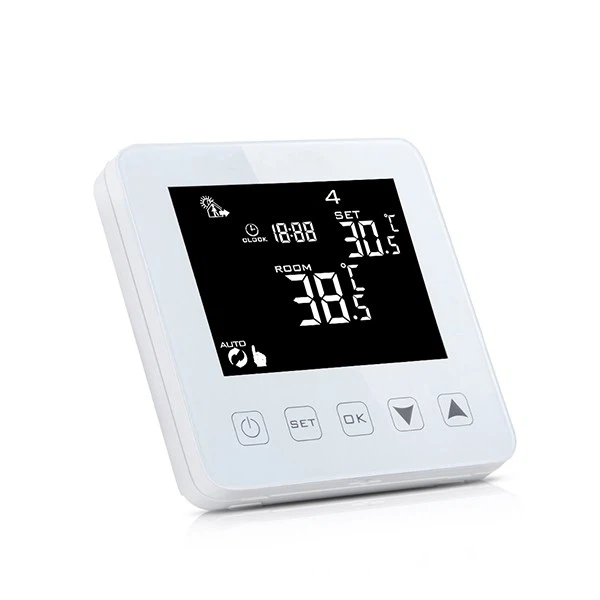

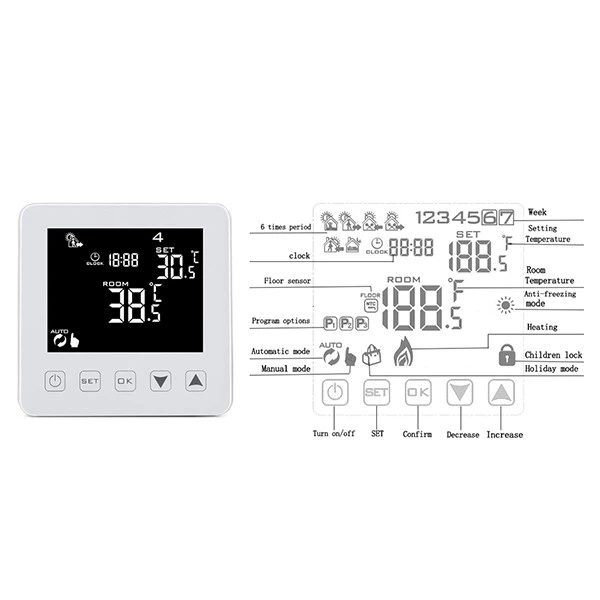

1.LCD display:
Elegant appearance, face design, scratch-resistant. Large LCD screen , easy to read.
2.A variety of control methods:
Button,Tuya app and voice mode can be used for different purposes.
Adjusting Thermostat on Water Heater WiFi version smart thermostat can be remotely controlled by your mobile devices (cell phone, tablet and computer) before you come back home. (APP: TuyaSmart / Smart Life)

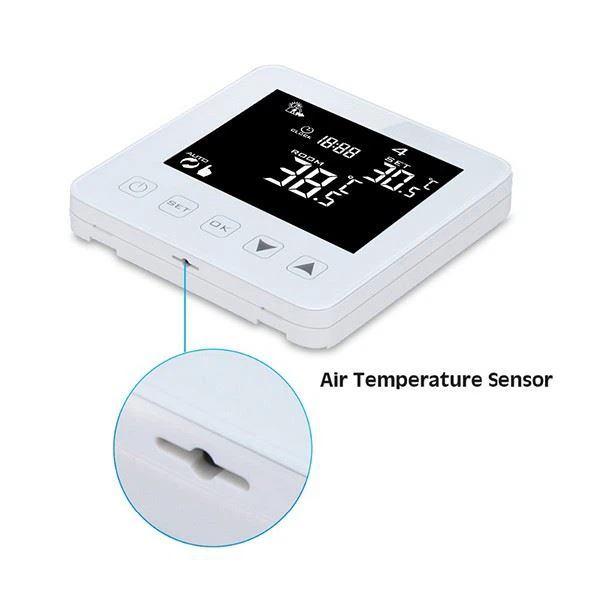

3.Internal and External sensor：
Indoor sensor floor sensor accurate temperature, sensing room temperature and floor temperature.
4.Manual/Auto Mode:
free to choose manual mode or auto mode for different purposes.
5.Memory Function:
No need to worry about power failure, data memory when power is off.
Product Application
Office Building, Hotel, Apartment, School, Villa, Home, Supermarket,
wiring diagram heating thermostat HY08-2 WIFI
The adjustable thermostat on a water heater is an ideal solution for controlling the temperature of an underfloor heating system. The thermostat allows users to adjust the heat levels as needed, ensuring maximum comfort and energy efficiency. The adjustable thermostat is designed to ensure consistency in temperature throughout the home, and can also be used in combination with other heating systems such as radiators or radiant heaters. It’s easy to install, making it a great option for DIYers.
Packing Listing
1 pc Thermostat
1 pc User Manual
A pair of screw
FAQ
Q1:Could we order a sample to test ?
Sure.It is available.
Q2:What Certificate do you have for this product?
CE (EMC,LVD,Health and Radio) & Rohs.
Q3: Could we pack it with personalization package ?
Of course ,and MOQ is 1000pcs if needed.
Q4: How long is the delivery time ?
Sample is within 3 days ,bulk order is 15-35 days as usually according to quantity.
Q5: What Certificate do your factory have?
ISO9001 and BSCI certificate.
